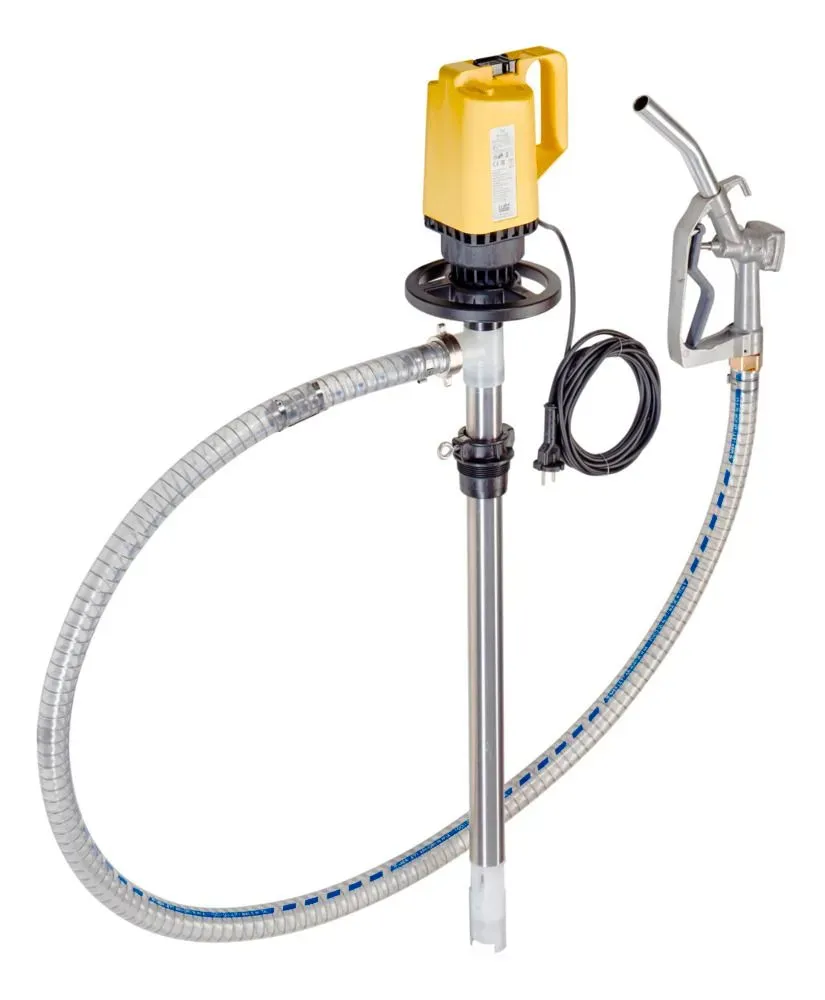

Electric Drum Pump for Oil/Diesel TT 1000, 1000 mm immersion depth
€1 008.90
Price incl. VAT (23%) €188.66
In stock
Product Details
Product description
- Ready for use
- Efficient
- Easy and safe to use
- Suitable for dispensing diesel, heating oil, hydraulic oil, machine oil, engine oil, etc
- Suitable for idle running
- Pump interior in aluminium
- 230 V / 500 W motor with A 5 M cable and plug
- For low viscosity mineral oil products
- Filling and refilling of material stored in drums or containers
- Ready-to-use kit, including a pump, media resistant hose (2 M), nozzle and drum adapter
Quality features
Technical data
| Drive | Electric |
| Application | Mineral oils |
| Immersion depth [mm] | 1.000 |
| Version | Drum pump |
| Material | Aluminium |
| Width, external [mm] | 200 |
| Length, external [mm] | 1200 |
| Height, external [mm] | 400 |
| Cable length [mm] | 5.000 |
| Hose length [mm] | 2.000 |
| Diameter, immersion tube | 41 |
| Sound level [db [A]] | 70 |
| Output [W] | 500 |
| Nominal voltage [V] | 230 |
| Max. density [kg/l] | 1,4 |
| Viscosity max [mPas] | 500 |
| Max. pump height [mWS] | 19 |
| Max. delivery volume [l/min] | 85 |
| Suitable for | Diesel, heating oil, hydraulic fluid, machine oil, motor oil up to a viscosity of max. 500 mPa·s |
| Thread description | Fine thread for steel drum |
| Certification / certificate | EC guideline (2006/42 KONFORMITÄTSERKL.), EC guideline (NSR 2006/95 KONFORMITÄTSERKL.), EC guideline (ROHS 2011/65 KONFORMITÄTSERKL.), ROHS 2011/65 KONFORMITÄTSERKL. |
| External thread | 2" BSP |
| Nominal width DN | 25 |
| Protection category IP | IP 24 |
| Seal material | Nbr |
| Weight [kg] | 6 |
| Brand | Lutz |
